Hohner String Vox

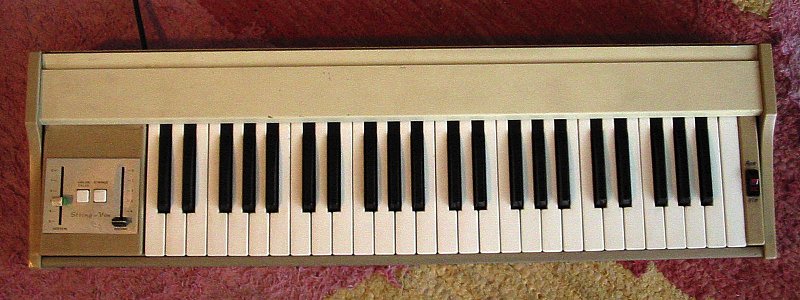

Hohner String Vox = ELKA Rhapsody 490

Hohner International sold the ELKA 490 under their label for the international market. The only very obvious difference is the beige colour. The ELKA were black. And the power supply on the Hohner International version is accepting 110 - 240 Volts at 50 or 60 HZ AC cycles

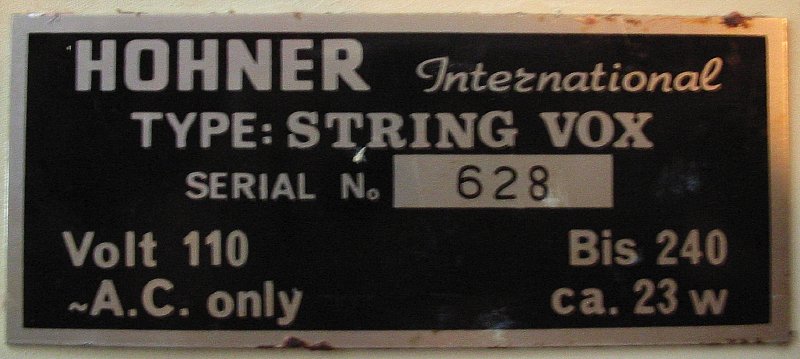

Hohner String Vox label

This one features two sound only: While the STRINGS are one octave above the other sound, it also sounds like a heavy highpass filtered pulse wave.
The VIOLIO CELLO is a bit lowpass filtered and uses a more buzzy sounding wave shape.

At the right hand of the keyboard you can set: So, there are not that much possible sound variations available.

On the left of the keyboard there is a power switch. Because on my unit the light of the switch is long gone, someone labeled the switch with the german words "Aus and "Ein". This translates of cause to "Off" and "On".

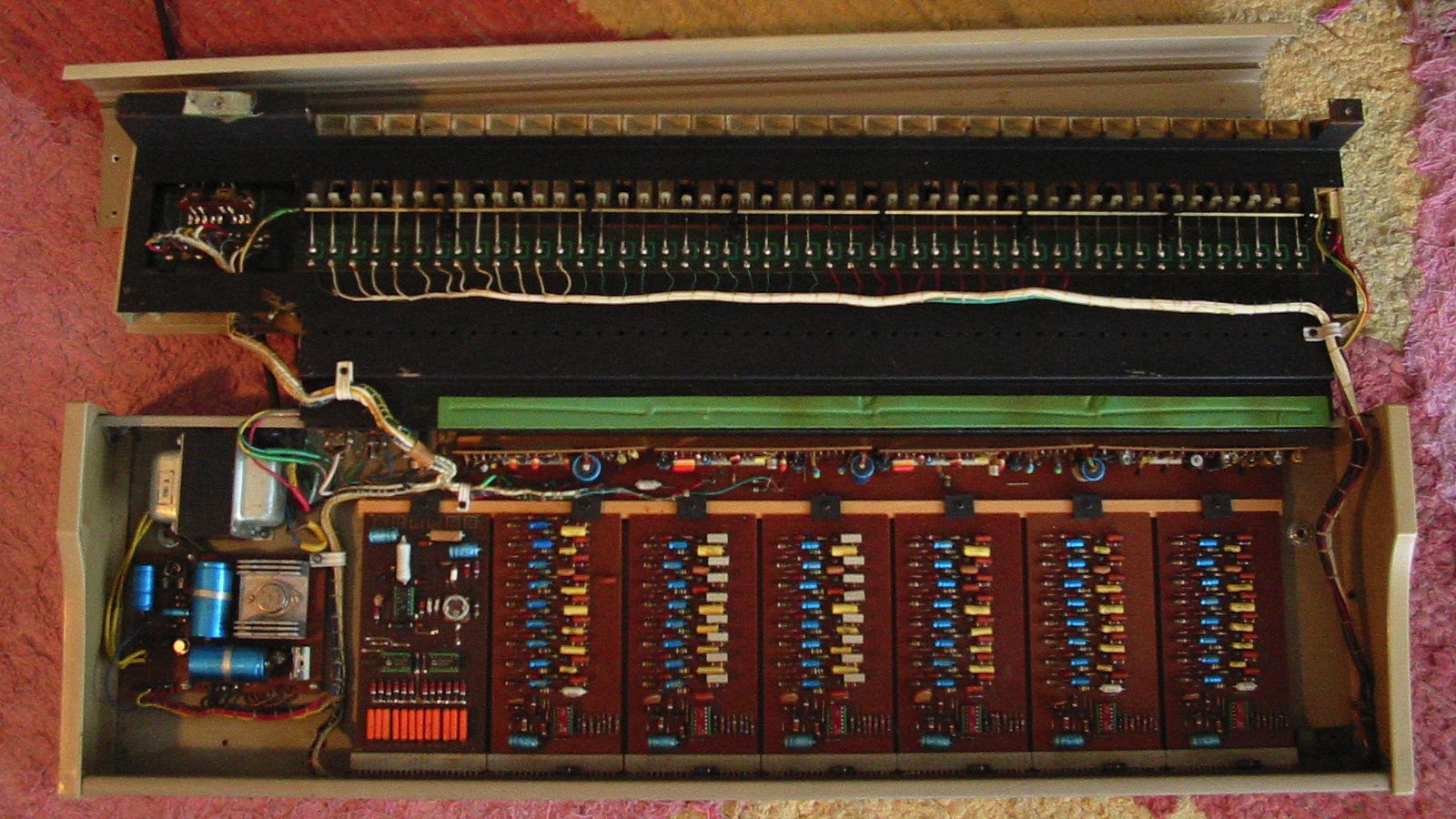

Hohner String Vox inside

To open the top you just need to undo four screws on the back and 2 under the unit.

Hohner String Vox board inside detail

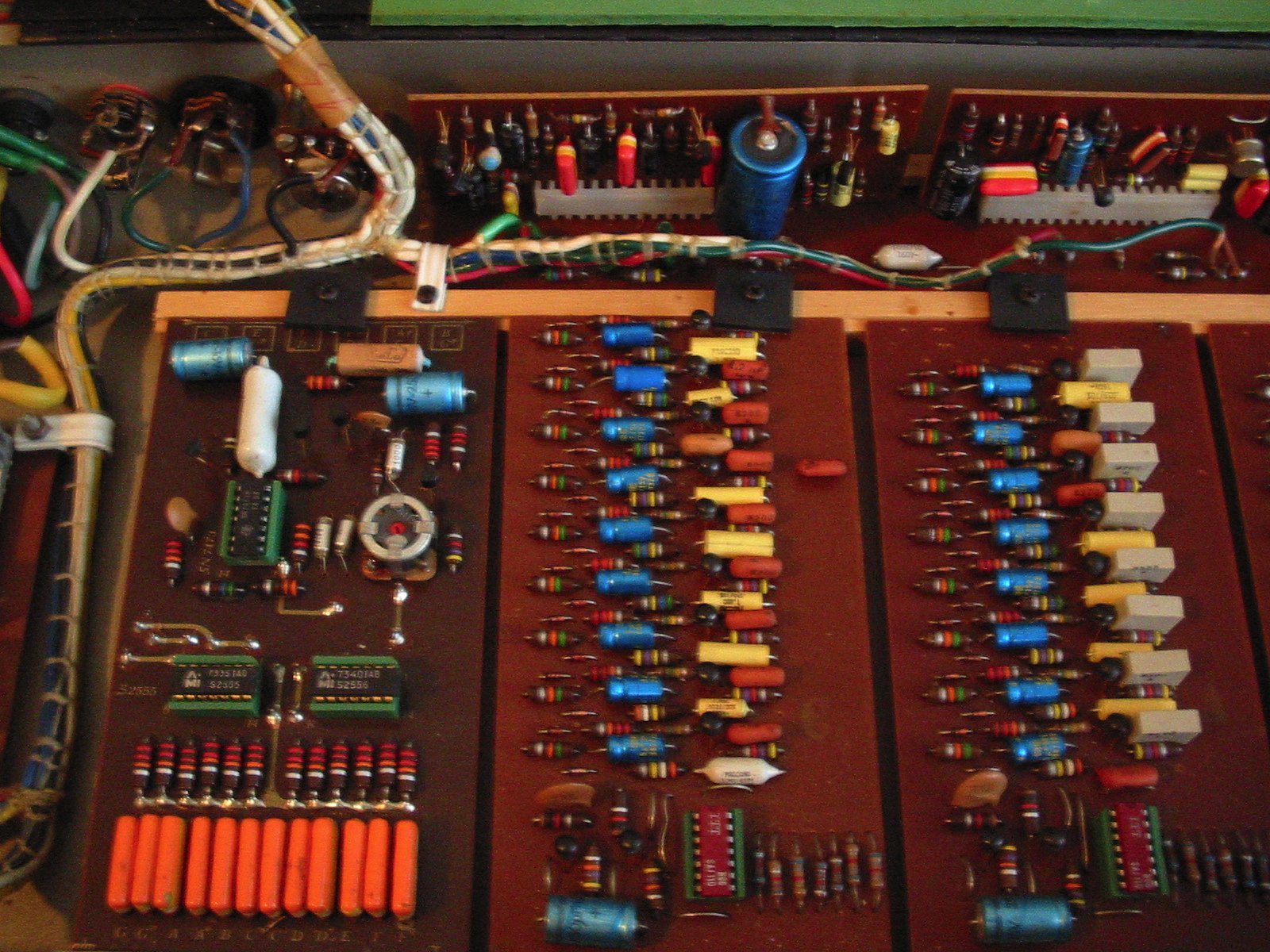

on the left board in the front you see the top oscillator and the two top octave divider chips (S 52255 and S 52256). These were used often in those days for organs.
The other boards in the front are dividing down (chip SAJ110 by ITT) the pitch of the top octave. Each board is doing it for two notes. These boards also do the filtering and shaping. Note that each board is using slightly different capacitor values. These depends on the pitch and the needed filtering. And if you look real close, you will notice that the very left board is doing one more pitch then the others. The top row of components there is doing the highest note of the 49 notes of the keyboard. So 6 boards with two notes each is 12 notes, the full octave of notes. And each board does 4 pitches per note (+ one additional on the very left board).

Hohner String Vox board inside detail

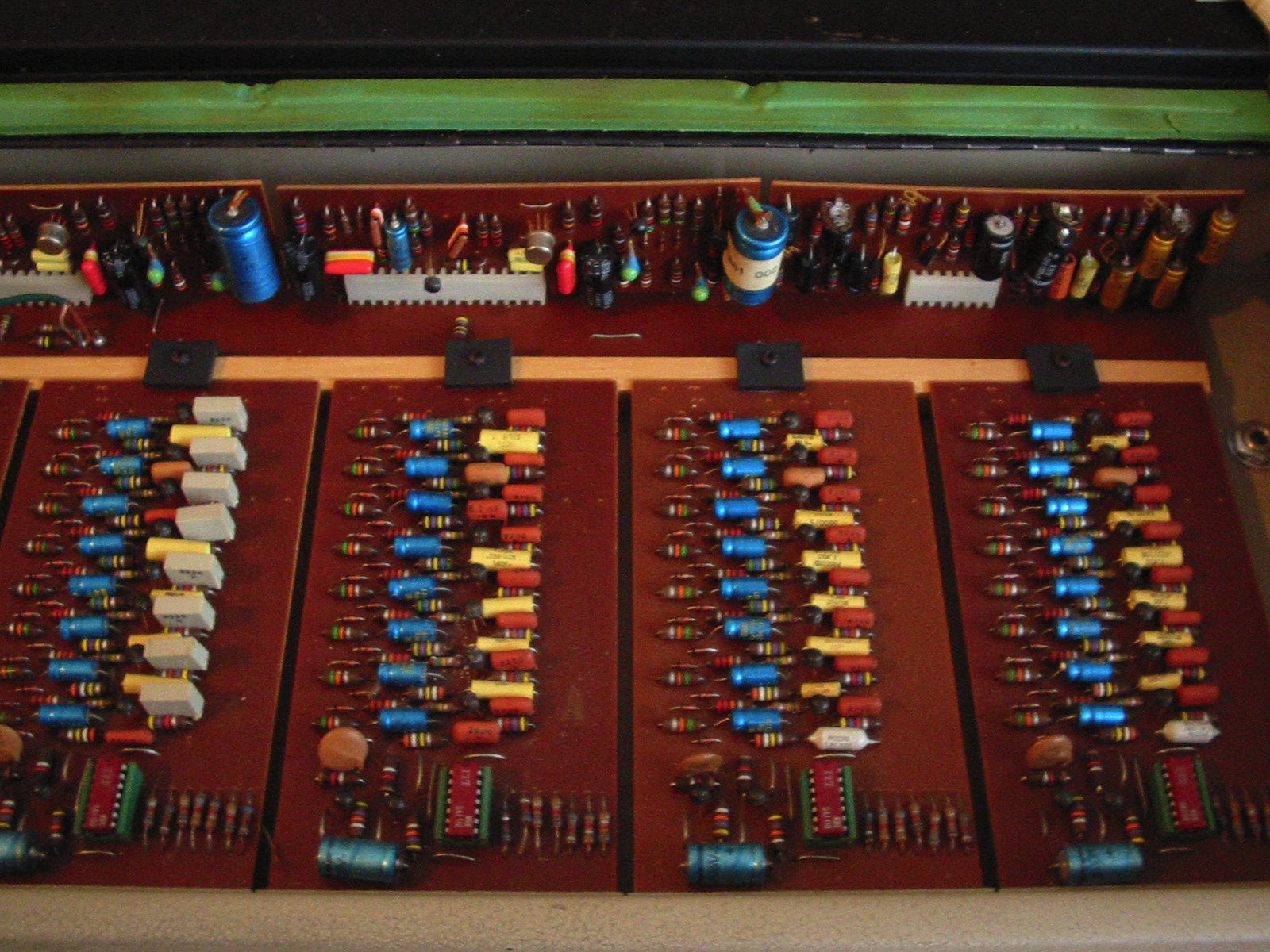

Here are the other of the six boards in the front

The boards in the back add some ensemble modulation. But not by using a chorus delay line, but some tremolo modulation. And a vibrato patched to the top oscillator.

Hohner String Vox date

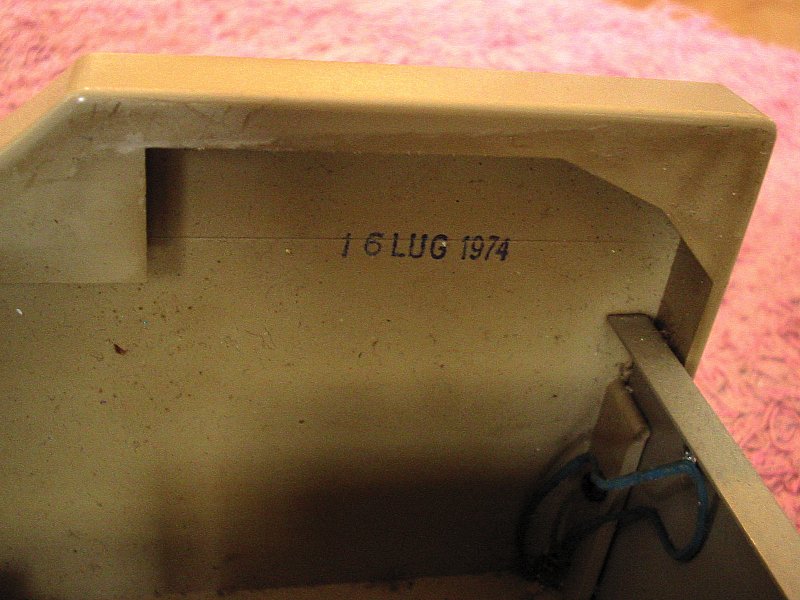

The date given on the inside of the left hand side panel tell when the instrument was build on the 16th of July 1974 !
This was a Tuesday if you can't remember it

Because there are not that much information known about the years of manufacture of the ELKa and the Hohner International version, we now know that it was at least build in 1974. Maybe also a year or two longer.

Listen to the ELKA version of it for example on Klaus Schulze's "Bayreuth Return" track from the "Timewind" record recorded on the 3rd June 1975.

I will add a few sounds later ...
